Potts Run Passive Treatment System

Potts Run Passive Treatment System

Project Details
Original Construction Year 2019
Most Recent Rebuild Year
Total Cost 0.00
Total Capital Cost $780,201.67
Latitude / Longitude Method Topographic Map
Latitude 40.872470
Longitude -78.471910
Elevation
Project Potts Run Passive Treatment System
Project Type Passive Treatment System
Project Status Good/Operational
AMD Source Surface, Underground
Stream Potts Run
Watershed
River Basin Susquehanna
Quad Ramey
City/Township Olanta / Knox
County Clearfield
State PA

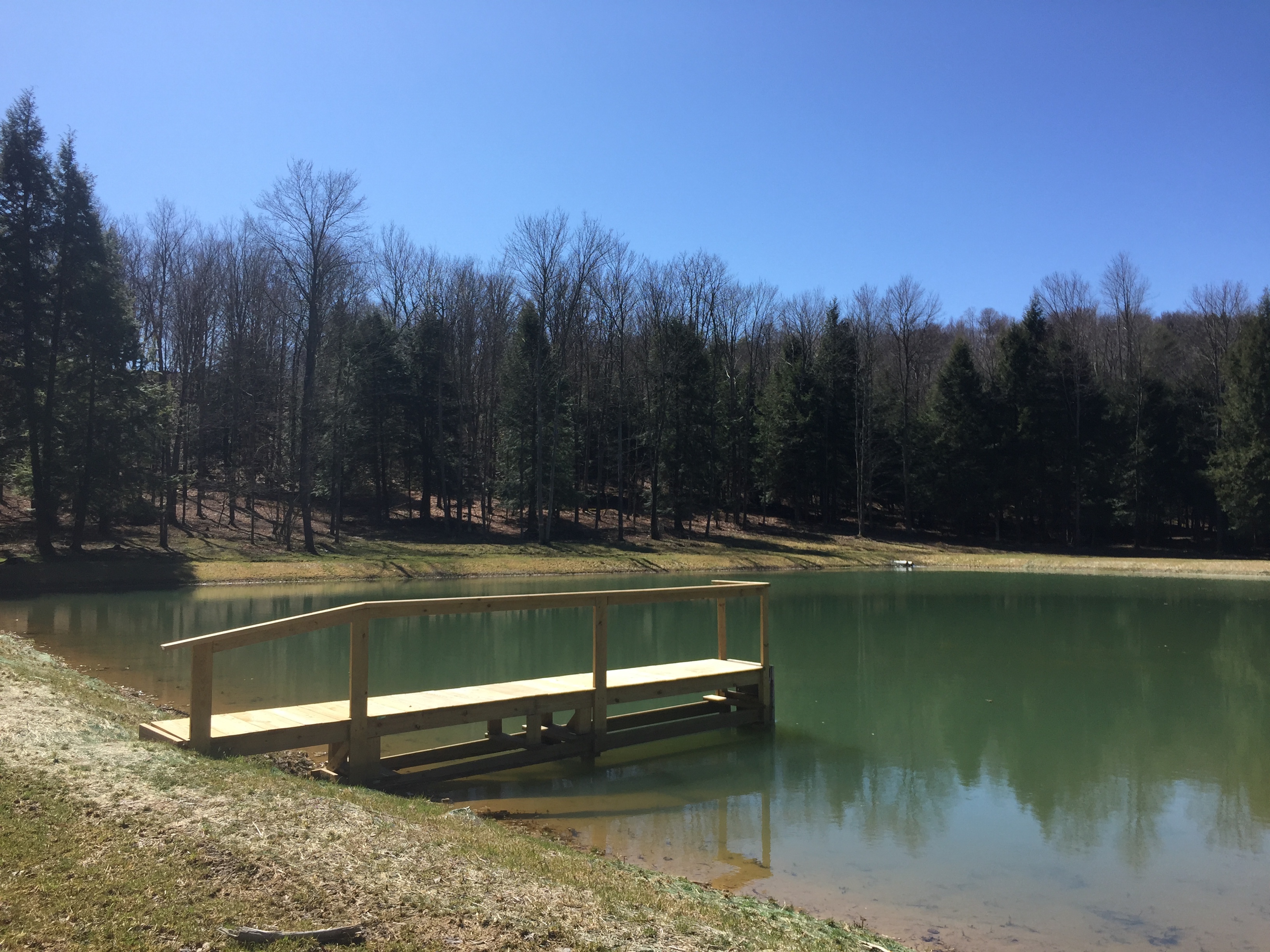

Description: The Potts Run Passive Treatment System was constructed in 2018-2019 to treat two sources of acid mine drainage—the Oak Twin discharge and the No. 3 discharge. The No. 3 discharge flows from an abandoned deep mine adit while the Oak Twin discharge is the effluent of a rock drain installed as part of a surface mine reclamation project. The treatment system consists of two vertical flow ponds (VFPs) arranged in parallel that discharge to a settling pond which discharges to an unnamed tributary to Potts Run. To ensure that the system provides decades of effective treatment at minimal cost, a regular operation and maintenance (O&M) program should be implemented so that problems are corrected before they impact system performance or become expensive to fix. This O&M plan provides guidance for inspection, operation and maintenance of the passive treatment system. https://www.tu.org/magazine/conservation/mine-drainage-cleanup-in-pennsylvania-perseverance-pays-off-in-the-potts-run-watershed/

Water Quality Data Summary

Treatment Technologies
Treatment Technology Quantity Status
Vertical Flow Pond (VFP) 2 Active
Settling Pond 1 Active
Location Links
Map
GPS Directions
Project Contacts
Contact Person:
Contact Organization: Trout Unlimited
Project Designer: Rachel Kester, Hedin Environmental
Project Designer Organization: Hedin Environmental
Project Responsible Organization: Trout Unlimited
Funding
Title Source Amount Date
Abandoned Mine Reclamation Grant Program PA DEP Other $1,208,504.00
Organizations
no data available
External System IDs
no data available
Project Performance
